Нов полуремарке ниска товарна площадка Özgül LW3 EU FIX

= Additional options and accessories =

- ABS
- EBS
- Spare tyre

= Remarks =

MASSES & DIMENSIONS
Gross Vehicle Weight (kg) : 58.000 Loading Platform Length (mm) : 9.000
Weight of Axle Group (kg) : 36.000 Total Lenght (mm) : 13.550
Kingpin Capacity (kg) : 22.000 Total Width (mm) : 2.550
Curb Weight (kg) : 12.300 Loading Platform Height (mm) : 920
Pay Load (kg) : 45.700 Height of 5.th Wheel (mm) : 1.310
CONSTRUCTIONS
Base Chassis
Heavy duty and extra durability designed BOX type chassis All welded S355 steel
chassis. Outer frame is UPE 240 profile.
Welding (Chassis) : Automatic ARC submerged.
Welding (Superstructure) : Automatic robot welding.
Axle (Type) : Özkoç Trax or Osman Koç Turkish Brand Drum brakes 3 x 12 Ton axles
Axle Lifting : 1st axle automatic
Suspension (Type) : Air Suspension.
Steering Axles : -
King pin (Type) : 1 position with 1x coupling-pen 2” (EU approved) Çayırova Brand.
Tires : 12+1 Units, 245 / 70 R 17.5 Fulda or Pirelli or Goodyear Brand.
Rims : 12+1 Units, 6.75 x 17.5 steel rims. Jantas or Ako Brand.
Landing Gear : Mechanical operated by one side, two speed. Gos Brand.
Brake System : Wabco EBS (4S/3M) with RSS according to EC Directive with ADR Adaptation.
Brake Chamber
1 axles with 2 units emergency brake chambers.
2 axle with 4 unit service brake chambers.
Electric System
24V, 2x7 + 1x15 pin sockets, according to SAE standard with ADR Adaptation
SABA Brand.
• 2 x Rear Stop Lights. - 4 x Side LED Lights.
• 2 x White LED Lights - 2 x Front LED Lights
• 2 x Registration Plate Lights - 2 x rotating Lights
Floor
Above tyres and edges of platform are covered chequered sheet and hard wood,the
middle surface is covered by flat sheet steel.

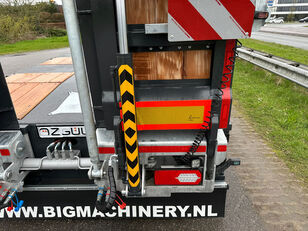

Rear Loading Ramps
Hydraulic operated rear ramps with Electro pump for rear ramps hydraulic
function with cable push – button for remote control.Folding type rear ramps length
2500 mm +1500 mm width 900 mm,covered all steel.Rear ramps are sliding internal
and external hydraulic. Short steel ramps behind of neck.
Color : Upon Request
Paint Application
Sand Blasting, Chemical cleaning, HYZINC covering, Epoxy covering and 2 coats
of acrylic paint.
TECHNICAL SPECIFICATIONS
Accessories
• 2 x 7 pcs of heavy duty lashing rings mounted on the outer frame mushroom type
• 4 x Certificated Expray mud flaps.
• 1 x Plastic water tank
• 2 x Wheel chocks and holders
• 2 x 7 Galvanized sides extensions brackets 250 mm + 250 mm
• 2 x Side Protections, Aluminium
• 1 x Tool box.
• 1 x spare Wheel carrier with 1 tire(on the gooseneck)
• 2 x Manual support Legs at the rear.
• 2 x Reflective tape and reflector sign at the rear and sides.
• 2 x Side extensions reflector
• Steel front panel(height:400mm)
• Aluminum side panels on gooseneck section(height:400mm)
• 1 plaque places on rear ramps or bumper

= More information =

CE mark: yes
COC available: Yes
